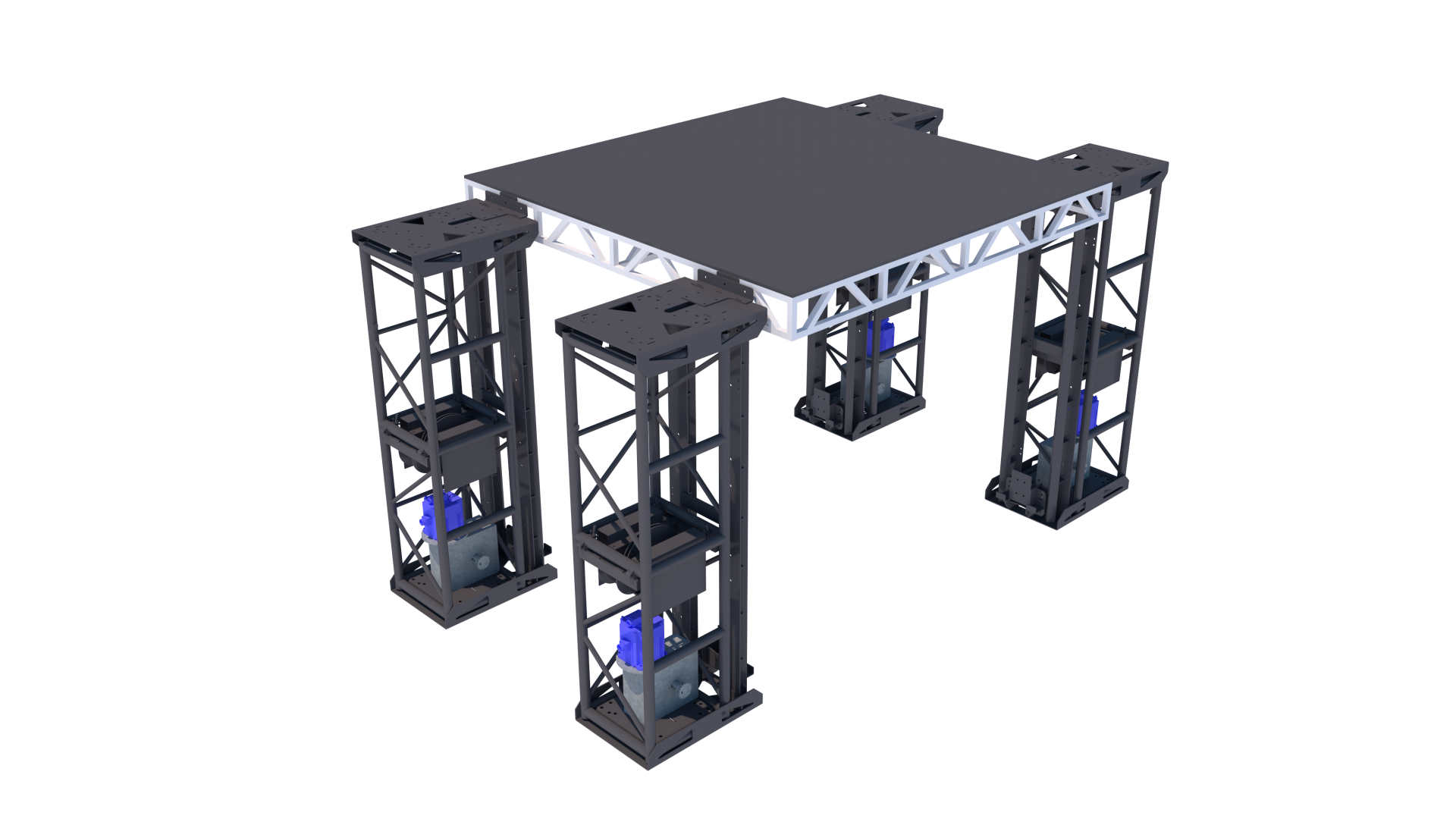

Using special chains and a 520 truss structure, it features a built-in sliding track lifting mechanism that can be controlled independently.
It can also be configured for various multi-axis synchronous control based on stage dimensions.
Programmable Chain Lift
Customizable according to customer needs, with adjustable speed and travel distance.

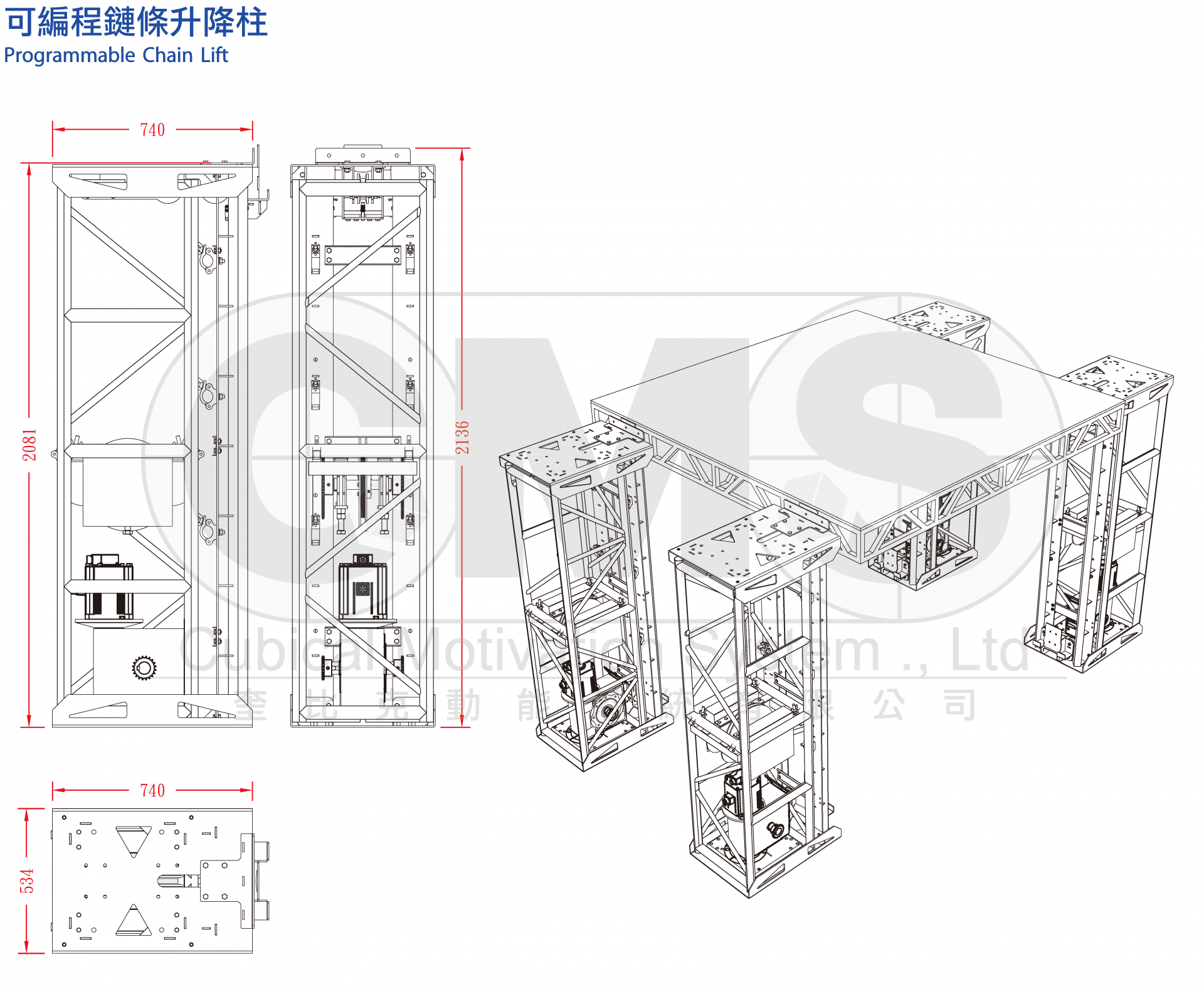

The Specifications of the Standard Model:
External Dimensions
- Length (L): 740 mm
- Width (W): 534 mm
- Height (H): 2081 mm (Height adjustment range: 1,800 mm to 2,400 mm, with specific heights at 1,800/2,000/2,200/2,400 mm)
Performance Specifications
- Travel: Up to 1900 mm (customizable based on customer requirements)
- Power: servo motor
- Load Capacity per Unit: Up to 500 kg
- Maximum Speed: 30 cm/sec
