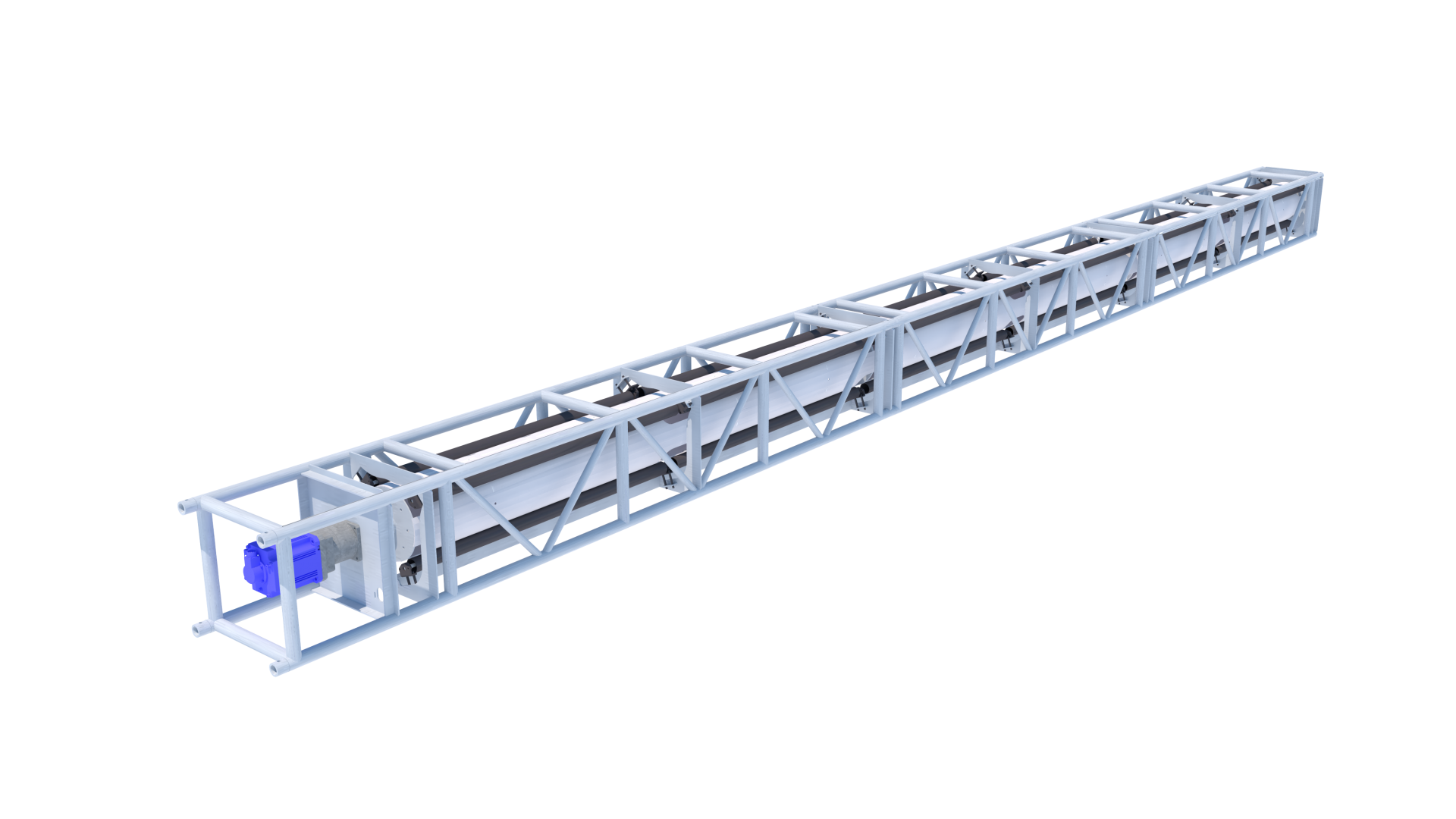

Extended-Width Curtain Roller

Original design changes the structure of the large seamless curtain storage roller to ensure that the curtain is not worn or damaged during repeated use.

It is compatible with standard truss system structures.

(The paper shows a schematic diagram of 9800mm.)

Features
Specifications

Customizable according to customer needs, with adjustable speed and travel distance.

The modular design allows the curtain width to be tailored from 6 meters to 24 meters based on customer specifications.

The Specifications of the Standard Model:

Roller Dimensions

Length: Ranges from 6 m to 24 m, modularly increasing in 3 m increments.
Maximum Capacity: Can accommodate up to 24 m (W) x 18 m (H) of sheer fabric.

Truss Dimensions

Width (W): 520 mm
Height (H): 520 mm
Length: Ranges from 6,800 mm to 24,800 mm, modularly increasing in 3,000 mm increments.

Performance Specifications

Power: servo motor
Rolling Speed: Up to 3.14 m/sec.
18 m high sheer curtain can be fully rolled up in 6 seconds.
