This device walks on stage and can be equipped with various hard scenery and LED screens, adding dynamic and mesmerizing effects to the stage.

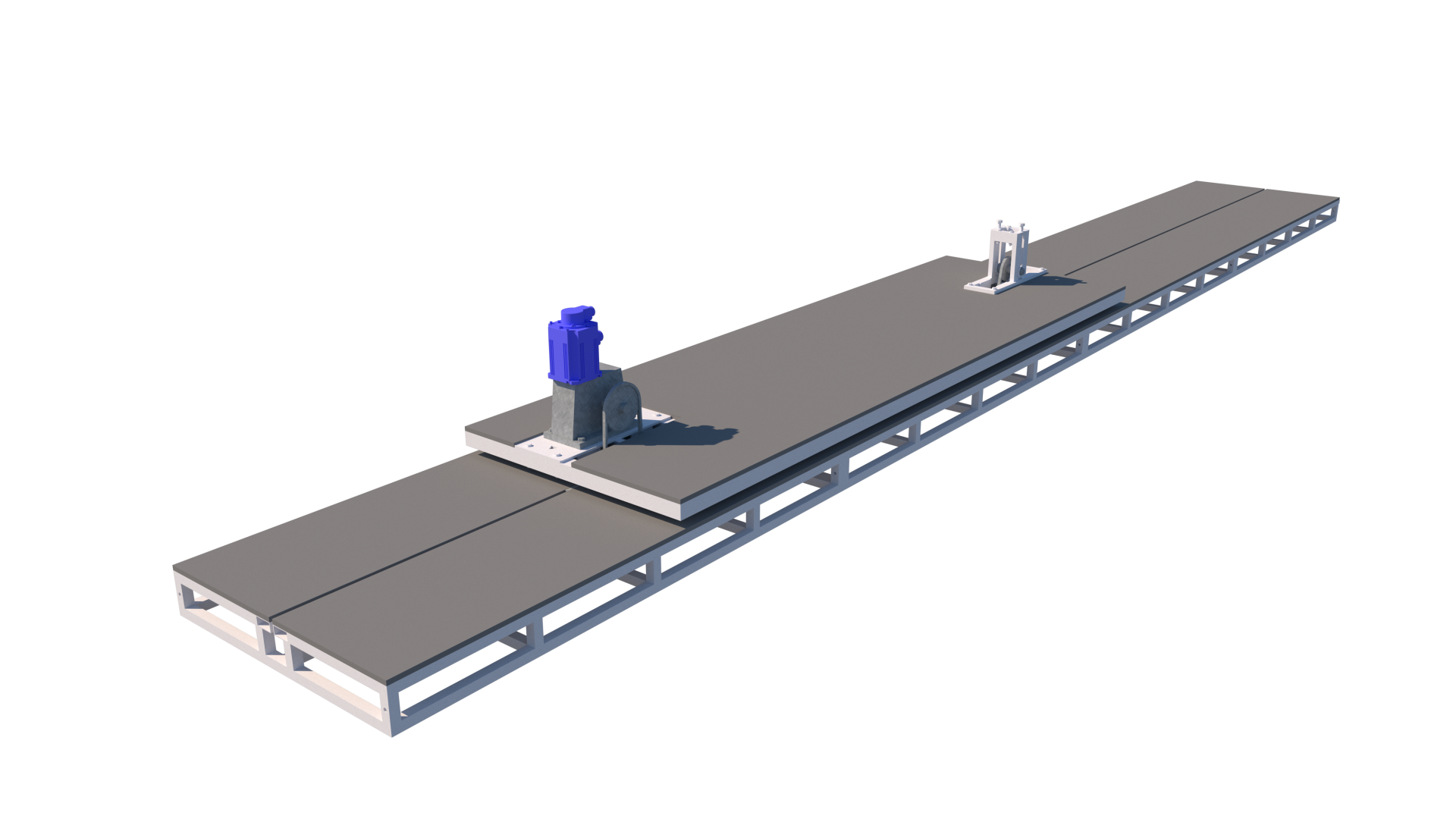

Sprocket System Tracked Wagon
Customizable according to customer needs, with adjustable speed and travel distance.
The modular design allows the length of the track platform and track cart to be tailored to customer specifications.

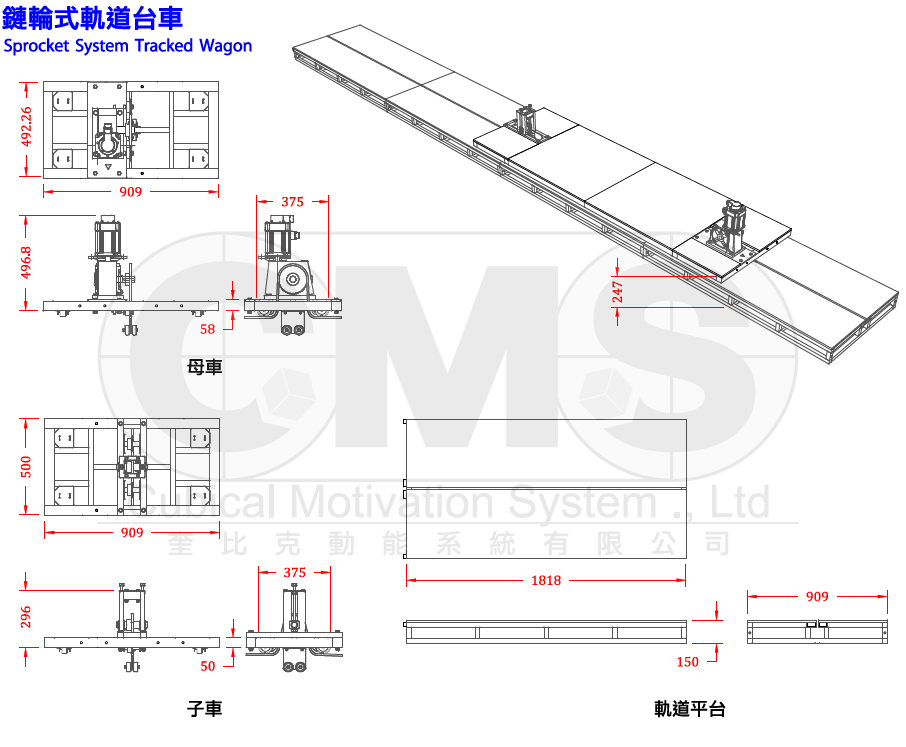

The Specifications of the Standard Model:
Track Platform (Single Unit) Dimensions
- Length (L): 1818 mm
- Width (W): 909 mm
- Height (H): 150 mm
Track Trolley (Main Trolley)
- Length: 492 mm
- Width: 909 mm
- Height: 496.8 mm (including drive unit height)
Track Trolley (Sub Trolley)
- Length: 500 mm
- Width: 909 mm
- Height: 296 mm
Performance Specifications
- Power: servo motor
- Maximum Movement Speed: 50 cm/sec
