Using a simple rigid chain, we create a stable and precise vertical lifting device for use in very tight spaces.

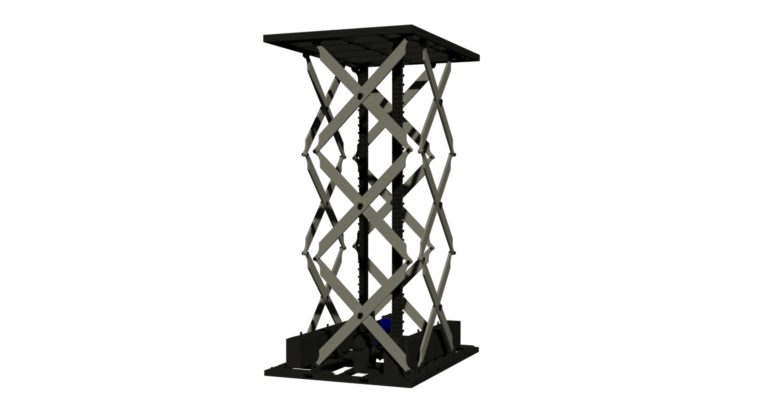

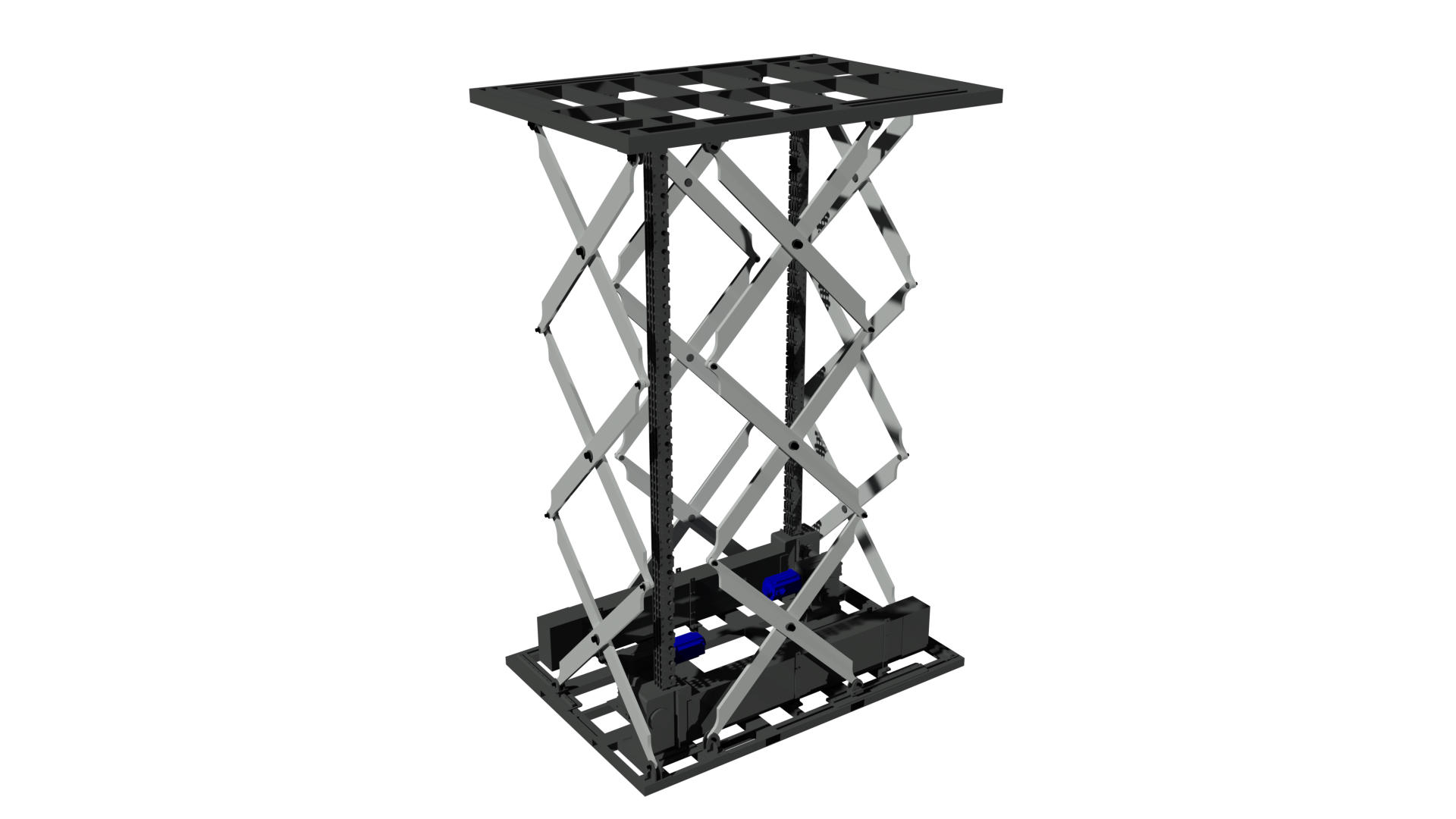

8'x10' Heavy Duty Rigid Chain Lift
The Specifications of the Standard Model:
External Dimensions
- Length: 3,200 mm
- Width: 2,250 mm
- Height: 869 mm
Travel Range
- Maximum Travel : 400 cm
Performance Specifications
- Power: 10 HP (7 kW) servo motor
- Maximum Load Capacity: 1,200 kg
- Maximum Operating Speed: 10 cm/sec
